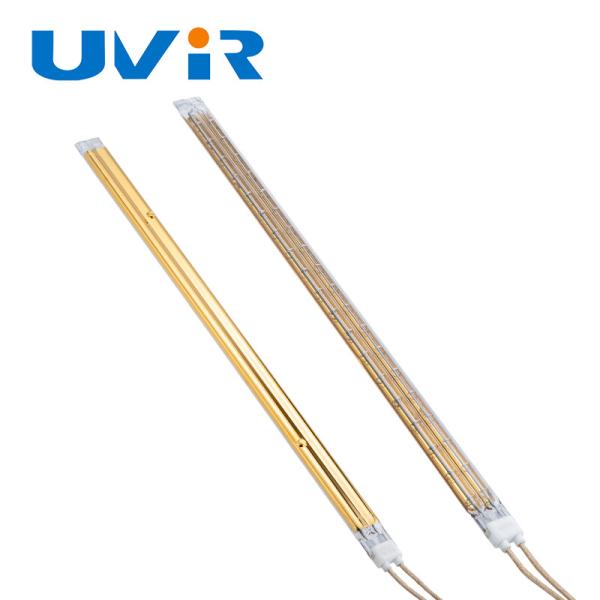

TC05 quartz halogen infrared heater lamp 3825W ir lamp heating for paint drying

Short Wave IR Lamp Advantages

1. The wavelength is controlled in the range of 0.76 ~ 1.4 m, the user can choose different wavelength heating tubes according to the material and physical characteristics of the heated workpieces.

2. The heating tubes have high thermal efficiency, the infrared radiation efficiency can reach over 86% in a certain wavelength and direction. The thermal inertia of the infrared radiant heating tube is very small, it can reach about 50% of the rated power in 1 ~ 2 seconds after electrification, and can run at full power in about 2 ~ 4 seconds, heating up and cooling down quickly and accurately.

3. The heating tube has a small volume and a large power, the rated power of a single heating tube can be more than 6000W.

4. According to the needs of customers, a gold-containing directional reflecting layer can be sprayed on certain parts of the outer wall of the heating tube, which can greatly improve the heating efficiency, lower the temperature of the reflector.

5. high-quality quartz glass tubes and heating wire materials with professional processing technology, resulting in the long service life of infrared lamp tubes, the short-wave tube has a service life of more than 5000 hours.

6. All kinds of heating equipment made up of infrared radiation heating tube can realize automatic temperature control through temperature controller, thyristor AC power regulator or voltage regulator. Because of its small thermal inertia, the temperature control is quick and accurate.

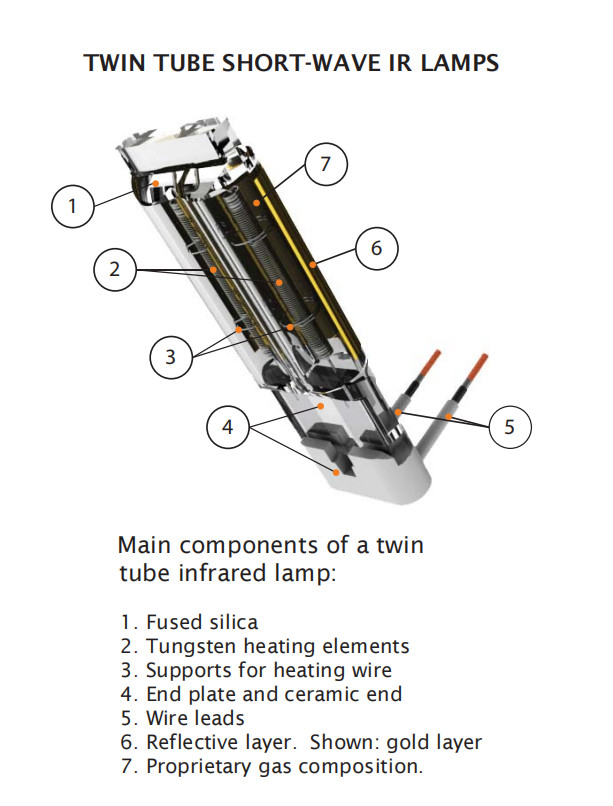

TWIN TUBE SHORT-WAVE IR L AMPS

Main components of a twin tube infrared lamp:
1. Fused silica
2. Tungsten heating elements
3. Supports for heating wire
4. End plate and ceramic end
5. Wire leads ,
6. Reflective layer. Shown: gold layer
7. Proprietary gas composition.

Product information:

Standard cros S-S ection dimensions for industrial
IR twin tubes in mm

The strength of a quartz tube was drastically increased by borrowing a design concept from the construction industry: the steel beam. This new design allows twin tube lengths of up to 6 m (cross section: 33 X 14 mm)

Heater dim ensions depend on the required voltage/wattage relationship.

Product details

Stock and Standard (Non-Stock) Twin Tu be Short-Wave Lamps

If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!

Product Coding Rule Table

After Sales Service

1. Package tracking

2. Technical support

3. 24 hours working time

4. Discount for reorder

5. Replacements for quality problems

6. Confidentiality of customer information

Our Services & Strength

* Expert sales teams are responsible for accurate communication.

* Professional technical teams are responsible for new product development.

* Technical production teams are responsible for assembly line production.

* Expert quality inspection teams are responsible for quality inspection.

* Experienced after-sales teams are for all customers.

Precautions

After Sales Service

• Package tracking
• Technical support
• 24 hours working time
• Discount for reorder
• Replacements for quality problems
• Confidentiality of customer information

OEM Service

• We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
• We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.

Our Team

• Our company management team has nearly 30 years of experience in the optoelectronic industry, and has hired American infrared heating technology experts as technical consultants. With years of industry experience and market research, the company's R&D team can customize matching lamp types to suit your R&D innovation according to your needs, so as to cooperate with your development innovation and the upgrading of workshop processes, and keep up with the changing market trends.
