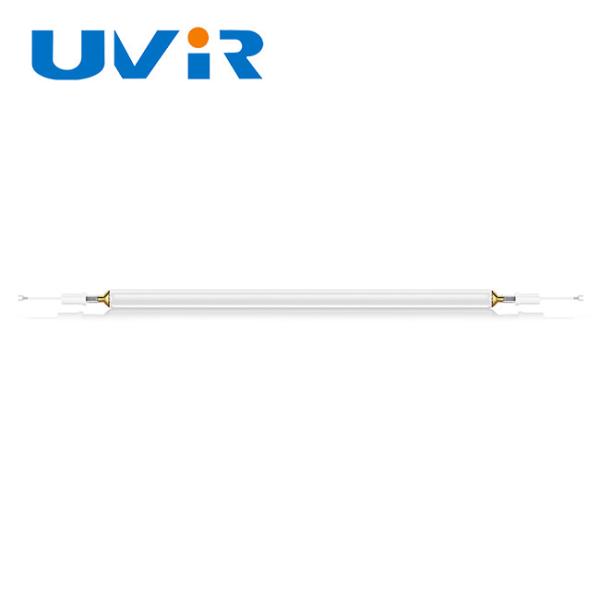

2300V 14kw Metal halide lamp uv curing lamp UV curing lamps for
Electronic product coating
AboutMetal halide lamp
Metal Halide - By adding other elements/additives such as iron,
lead, gallium, indium, etc. to the lamp tube, we can make a range
of metal halide lamps. These additives alter the wavelength
composition of the UV output of the lamp, making it suitable for
deep UV curing of ultra-thick coatings. According to this
characteristic, Yuyu metal halide lamps are widely used in PCB,
wood-based coating, electronic product coating, optical fiber
manufacturing, etc.
Lamp Parameter
Power output | 14KW |
| Wavelength | 365nm |
Arc length | 1200mm |
| Material | High Quality Quartz Tube |
End caps | Ceramic / metal |
Service life | 800 to 1000 hour |
Product details
Other Parameter
UVIR Model No. | Power
(KW) | Voltage
(V) | Current
(A) | Total Length (mm) | Arc length (mm) | Tube Φ (mm) | Lamp Base | Wave Peak |
| XUV 005004 FC | 0.4 | 90 | 5 | 115 | 50 | 17 | FC | 365nm |
| XUV 020010 BC | 1 | 135 | 8 | 335 | 200 | 22 | BC | 365nm |
| XUV 025020 AC | 2 | 300 | 7.5 | 400 | 250 | 22.5 | AC | 365nm |
| XUV 025030 AC | 3 | 700 | 5 | 360 | 250 | 25 | AC | 365nm |
| XUV 025040 DC | 4 | 320 | 14 | 330 | 250 | 25 | DC | 365nm |
| XUV 070056 BC | 5.6 | 950 | 7.2 | 825 | 700 | 25 | BC | 365nm |
| XUV 050060 AC | 6 | 850 | 7.8 | 640 | 500 | 22.5 | AC | 365nm |
| XUV 065070 HC | 7 | 928 | 7.4 | 780 | 653 | 22.5 | HC | 365nm |
| XUV 100080 BC | 8 | 850 | 9 | 1172 | 1028 | 22.5 | BC | 365nm |
| XUV 124096 AC | 9.6 | 1500 | 8 | 1387 | 1247 | 25 | AC | 365nm |
| XUV 112100 AC | 10 | 1500 | 7.2 | 1260 | 1120 | 23 | AC | 365nm |
| XUV 130120 AC | 12 | 1800 | 7.5 | 1440 | 1300 | 25 | AC | 365nm |
| XUV 120144 AA | 14 | 2300 | 6.3 | 1328 | 1200 | 26 | AA | 365nm |
| XUV 077150 AH | 15 | 1250 | 12 | 870 | 770 | 25 | AH | 365nm |
| XUV 107160 AC | 16 | 2000 | 8 | 1185 | 1070 | 28 | AC | 365nm |
| XUV 150180 BC | 18 | 1730 | 10.6 | 1600 | 1500 | 25 | BC | 365nm |
| XUV 105199 DC | 19.9 | 660 | 30 | 1145 | 1055 | 27 | DC | 365nm |
XUV 143200 AC | 22 | 2000 | 11 | 1430 | 1530 | 28 | AC | 365nm
|
If the parameter is not suitable for you, please contact me, we
have a professional elite team, will provide the professional
knowledge and drawings for you!
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 5-7 days, about 30 days for mass production.
Q3. Do you have any MOQ limit?
A: Usually MOQ is 100pcs for each model.
Q4. How do you ship the goods?
A: We usually ship by DHL, UPS, FedEx or TNT for sample. Airline
and sea shipping for large quantity.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system
Secondly, during the guarantee period, we will send the replacement
in next order.
