14mm IR Lamp Holder , twin tube short wave Infrared Heat Lamp
Holder

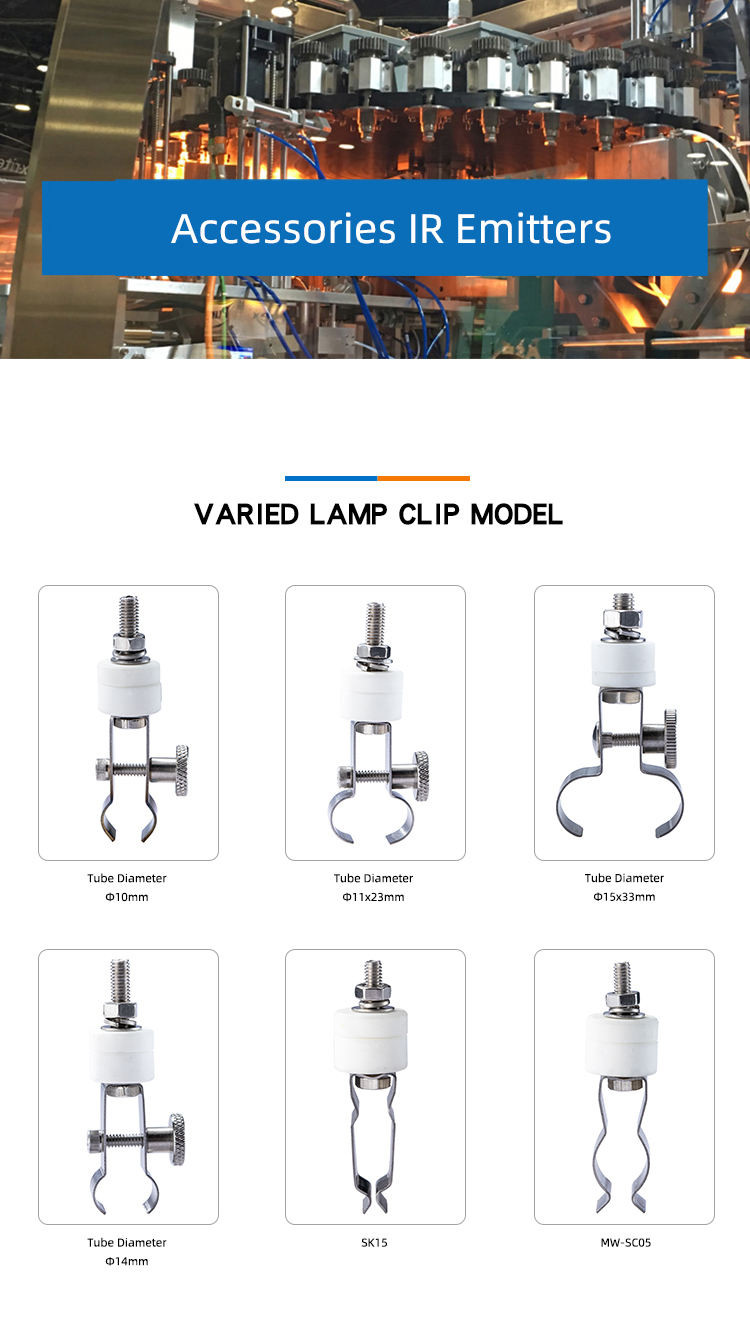

CLAMPS FOR SHORT WAVE TWIN L AMPS
Twin Tube
Cross- Section | a | b | c | d | e | M | UVIR N0. |
 | 10 | 23 | 25 | 25 | 10 | M5 x 20 | GJ0002 |
 | 15 | 33 | 30 | 25 | 15 | M5 x 25 | GJ0003 |
Product Details
Operating Instructions
The infrared twin-tube emitter is suited for horizontal operation
only. Special IR emitters for vertical installation positions are
specially manufactured and marked as such.
To install our IR emitters, usually one mounting and one spring
clamp, and if necessary, one or several central supports all
manufactured by HNI are to be used.The IR twin-tube emitter must be
secured in position of a stable support(steel support plate: >
1.5 mm).
The IR emitter(s) must be assembled in the following order:
1. Drill mounting holes with Φ9.2 mm for clamp.Spring in the
support (mounting plate)at distance L.
2.Screw the clamp spring in place with ceramic washers (1) on the
mounting plate (4).
3.Press the IR emitter into position in the retaining spring clip.
The emitter must point at all the surface to be heated. The gold
reflector should be pointing towards the support plate.
4.Tighten the fastening nuts (2) on the knurled nut (3).
Pulling the lead wire must not cause any tension on the press seal.
Bending radius of lead wire: > 30 mm

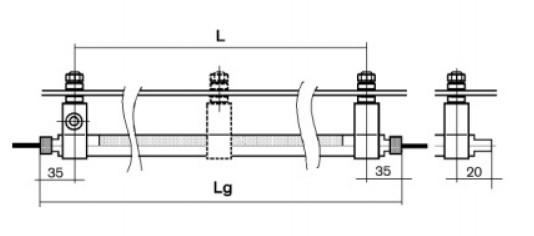

Mounting dimensions:
L = Overall length of emitter LG:2x35 mm (two-sided connection) or
L = Overall length of emitter LG:35 mm -20 mm (one- sided
connection)
If the following overall emitter lengths are exceeded for LG, a
central support is necessary:
Tube dimensions:23 x 11, LG >1 500 mm and tube dimensions 34x14,
LG > 2000 mm
After installation, the quartz glass tube of the IR emitter must be
cleaned on the side without gold plating. For this purpose, please
use the cleaning cloth included in our delivery or a clean linen
cloth (without textile finishing agents) soaked in methylated
spirit (such as rubbing alcohol) to remove any impurities/soiling
or fingerprints from the surface.
