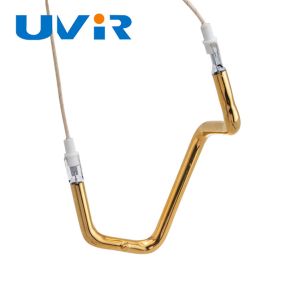

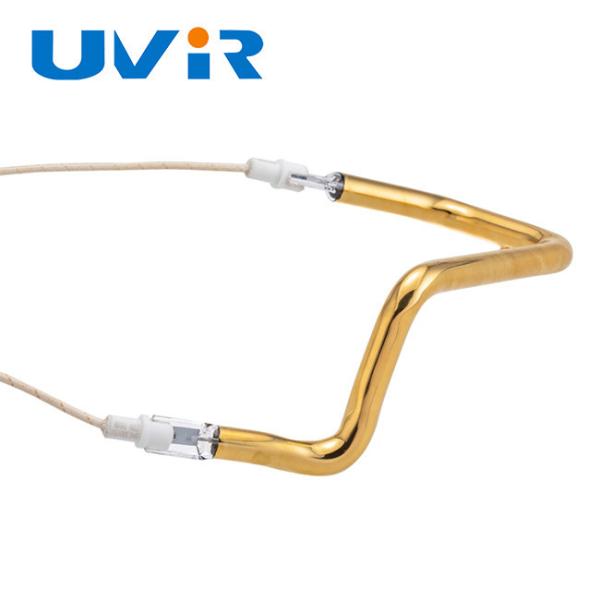

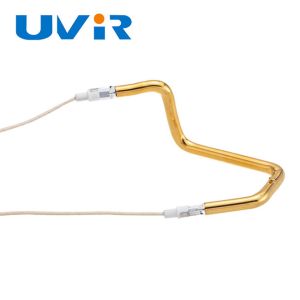

Customized Made 3D Shape Gold Paintcoat Flexible Heating Element
Guartz glass tube
1.High quality high-temperature quartz glass.
2.Long serving life: over 5000 hours.
3.nontoxic and peculiar smell, no risk of contamination over
environment or target object to be heated.
Product Details
We buy high quality quartz tube and cut according require by
customers , some equipments are imported from Japan and Germany ,
we design our machine to coil the filament , we use white reflector
material from GE and gold reflector material from Heraeus to make
sure our high quality products .
| Product name | Infrared Lamp |
| Finished | Gold Reflector |
| Rated Voltage | 230V |
| Power | 1050W |
| Lifetime | 5000 hours |
| OEM/ODM | many types of voltage,wattage,length,base,cables,universal burning
position is available |
You can choose other parameters:
Voltage
(V) | Wattage
(W) | Quartz Tube
(mm) | Shape | Reflector | UVIR NO. | FRIMO NO. |
| 115 | 510 | 10 | U | Gold | SHG300049 | 284343 |
| 230 | 800 | 10 | U | Gold | SHG300052 | 293640 |
| 115 | 710 | 10 | U | Gold | SHG300054 | 282014 |
| 230 | 1100 | 10 | U | Gold | SHG300053 | 283932 |
| 230 | 1330 | 10 | U | Gold | SHG300166 | 294058 |
| 115 | 600 | 10 | L | Gold | SHG300050 | 282106 |
| 115 | 520 | 10 | 3D | Gold | SHG300043 | 282094 |
| 230 | 880 | 10 | 3D | Gold | SHG300042 | 282093 |
| 230 | 1100 | 11*23 | L | Gold | SHG300039 | 282002 |
| 230 | 2800 | 11*23 | L | Gold | SHG300038 | 281997 |
| 230 | 2200 | 10 | 3D | Gold | SHG300045 | 282009 |
| 230 | 2200 | 10 | 3D | Gold | SHG300046 | 282008 |
| 230 | 2000 | 10 | 3D | Gold | SHG3000167 | 314255 |
| 230 | 910 | 10 | 3D | Gold | SHG300056 | 280727 |
| 230 | 810 | 10 | 3D | Gold | SHG300168 | 200728 |
| 230 | 1320 | 10 | 3D | Gold | SHG300037 | 280773 |
| 115 | 410 | 10 | 3D | Gold | SHG300169 | 280770 |
| 230 | 1450 | 10 | 3D | Gold | SHG300170 | 305417 |
| 230 | 1630 | 10 | 3D | Gold | SHG300035 | 305418 |
| 230 | 2290 | 14 | 3D | Gold | SHG300171 | 297058 |
If the parameter is not suitable for you,Please contact me.We have
a professional elite team,will provide the professional knowledge
and drawings for you!
Infrared Heating Lamp-Radiation Wavelengths and Advantages
Infrared heating technology radiates and conveys large amounts of
energy in a short time. By matching different optimum wavelength of
infrared, our Quartz Infrared (IR) Lamps are available for all
industrial and scientific heating applications. Different objects
different matched IR radiation wavelength-Short wave (0.9~1.4μm),
Fast response medium wave (1.4~2.0μm), Carbon medium wave
(2.0~2.5μm), Medium wave (2.2~3.2μm).
1: E-DEN infrared heating lamps can be switched on and off
frequently.
2: 1~2 seconds fast response time to full power IR heating energy.
3: Output power can be adjusted simply by voltage regulator
(0V~lamp rated voltage).
4: Accurate(±1 ℃)IR heating temperature control with SCR regulators
or solid state relays.
5: Small installation space, flexible horizontal or vertical
burning position by our infrared lamps.
6: Our infrared heating lamps are for all industrial heating
applications, the highest working temperature up to 1000 ℃.
7: Special Gold reflector (90% reflective rate) and Ceramic white
reflector (70% reflective rate) coated on IR lamp quartz tube
surface to reflect infrared radiation energy back on heated
objects.
8: Different objects different matched IR radiation wavelength-IR
lamp Short wave (0.9~1.4μm), Fast response medium wave (1.4~2.0μm),
Carbon medium wave (2.0~2.5μm), Medium wave
If the parameter is not suitable for you,Please contact me.We have
a professional elite team,will provide the professional knowledge
and drawings for you!
Our Services & Strength
* Expert sales teams are responsible for accurate communication.
* Professional technical teams are responsible for new product
development.
* Technical production teams are responsible for assembly line
production.
* Expert quality inspection teams are responsible for quality
inspection.
* Experienced after-sales teams are for all customers.
