Customized Product Halogen Lamp Ring Type Infrared Tube Short-Wave Infrared Lamp

The Advantages Of OYATE Heat Lamp

Carbon fiber heat lamp (Middle wave infrared heat lamp)

*High-priced imported carbon fiber filament.

*The finished filament is smooth and does not fluff.

*Advanced carbon fiber weaving process,smooth surface.

*The optimum power and maximum longevity.

Guartz glass tube (Single tube and twin tube)

*High quality high-temperature quartz glass.

*Is totally transparent at IR radiation.

*If you need more heat under the same conditions, it is your best choice(twin tube).

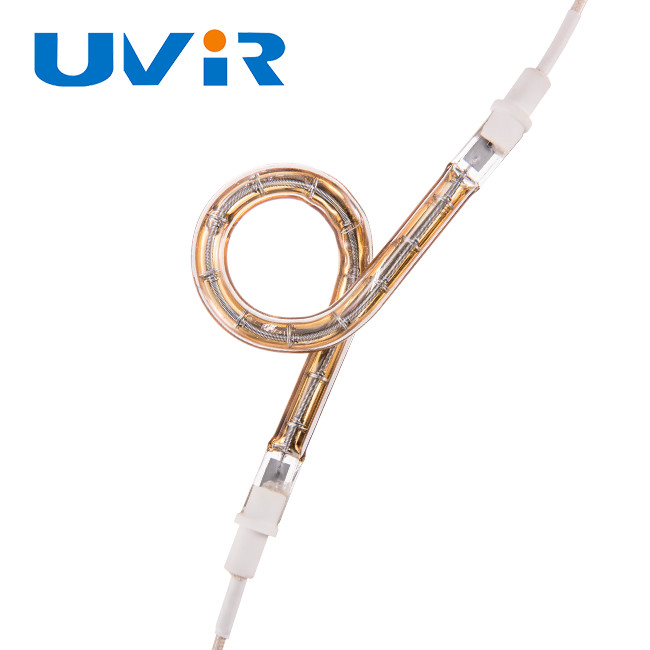

Halogen Lamp Ring Type Infrared Tube Oven Heating Element

Ring Tube IR Lamps

Special Designs for Circular
2,3-D Surfaces

Main Design Characteristics
●Ring diameter from 39 up to 600 mm
●Voltage from 24 to 575 V
●Short, Medium and Long-Wave IR designs
●Availability in various tube colors
●The tube diameter can be from 8- 14 mm.
Its selection depends on the heater's diameter
and the voltage/wattage relationship
Standard stock items for immediate delivery
●Custom and OEM designs are available

Stock and Standard (Non-Stock) Short-Wave Ring Lamps

If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!

Product Coding Rule Table:

Infrared is divided into 3 segments by wavelengths measurements

* 1.0 ~1.3 μm Short-wave infrared

* 1.6 ~ 1.8 μm Miedium-short wave infrared

* 2.5 μm Medium-wave infrared

Reflector heat lamp

* To transmit and focus heat more efficiently on the material.

* A special reflector is directly applied on the quartz tube.

* According to the specific application and customers’ needs.

*We usually applies gold, white and ruby reflectors on heat lamp.

Ruby heat lamp & all gold heat lamp

* Reduce the brightness of visible light.

* Reduce wavelength, increase heat.

White heat lamp

* Imported ceramic white plating material.

* The white reflector coating is stable, not easy to fall off.

Gold heat lamp

* Imported gold plated material,gold water plated.

* Reflect heat use,Stronger reflection efficiency.

* Reflection effect is better than white plated.

Reflector lamps focus infrared heat forward in the direction where it is required, reducing the loss of heat to the rear and improving efficiency. A reflective coating is applied to the surface of the lamp, usually covering 180° of the quartz tube. Infrared heat is emitted forward through the quartz tube, or is reflected off the back of the tube to then pass outfrom the front. Infrared heat lamps, with a reflector coating or clear heat lamp be used in various machines.

* Short wave clear heat lamp
* Short wave white heat lamp
* Short wave gold heat lamp

FAQ

1. could you supply clamps for lamp installing ?

Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.

2. How does your factory do quality control

" quality is priority", we always and keep paying more attention to QC from the material purchasing to the lamps' packing. Our product have gained
CE, ROHS, ISO9001.

3. What information should i provide when enquire?

Lamp’s type, Total length,Heating length ,Wattage,Voltage,Ceramic end connection ,Lead length in mm (Standard lead wire length 300 mm),Coating available - Gold coating / Ceramic coating, quantity, it couldn’t be better if there is drawing or picture can be provided.

After Sales Service

• Package tracking
• Technical support
• 24 hours working time
• Discount for reorder
• Replacements for quality problems
• Confidentiality of customer information

OEM Service

• We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
• We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.

Our Team

• Our company management team has nearly 30 years of experience in the optoelectronic industry, and has hired American infrared heating technology experts as technical consultants. With years of industry experience and market research, the company's R&D team can customize matching lamp types to suit your R&D innovation according to your needs, so as to cooperate with your development innovation and the upgrading of workshop processes, and keep up with the changing market trends.
