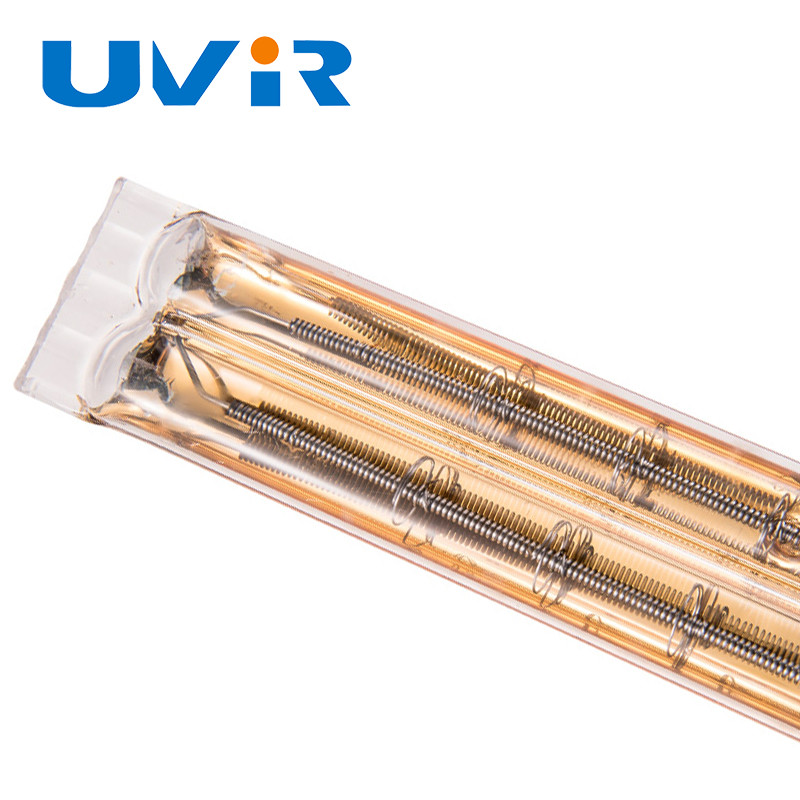

IRP013 6200W fast medium wave Halogen infrared heating lamps for
the 3D printer industry
OEM Service
We can advise the customer choosing the right heat lamp for the
specific application. Furthermore, the Technical Department can
design the right lamp based on the customer’s specific technical
instructions.
We can product many sizes and types heat lamp according to
customers requirement, and so on.If have drawing is beat, then we
can do samples for you.
Product parameter
| Product name | infrared lamp for PrintingMachine |
| Size | 15*33mm |
| Coating | Gold |
| Power | 400V |
| Voltage | 6200W |
| OEM/ODM | many types of voltage,wattage,length,base,cables,universal burning
position is available |

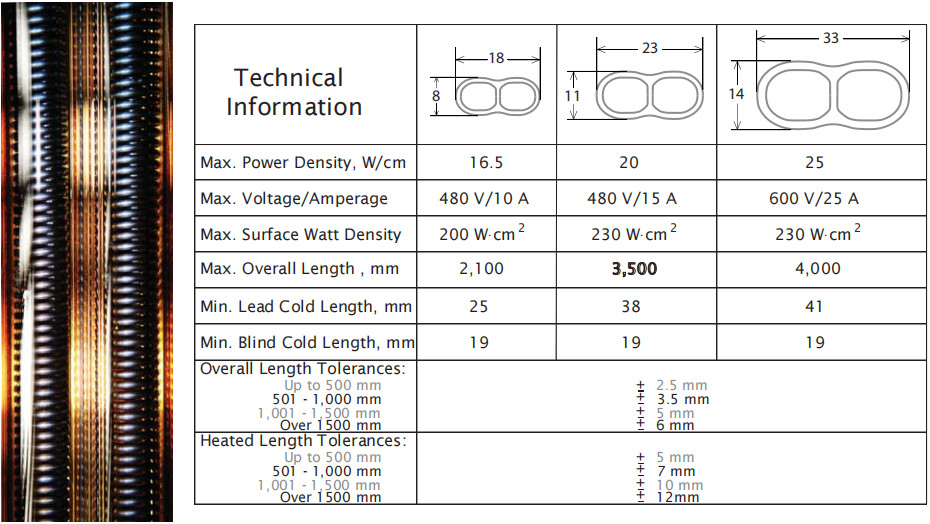

TWIN TUBE MEDIUM-WAVE IR L AMPS
Products detail
IRP Infrared lamp for Printing Machine
| Dryer | UVIR
Code | Lamp
Code | Energy | Volts | Watts | Total
Length | Tube Corss

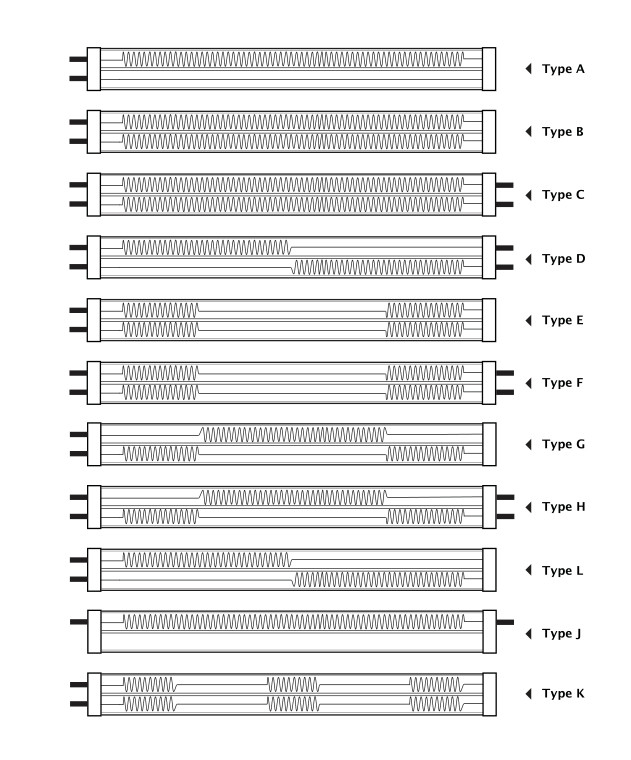

Section | Constr
uction | Dryer Detail |
| SM52 | IRP001 | SM52-SW-A | short wave | 415 | 3300 | 712 | 11*23 | B | Grafix
Heidelberg
SM52 |
| Heidelberg MO | IRP002 | HMO-SW-A | short wave | 415 | 3300 | 740 | 11*23 | B | Grafix
Heidelberg
MO |
| Heidelberg MO | IRP003 | HMO-MW-B | med. wave | 415 | 1800 | 740 | 15*33 | B | Grafix
Heidelberg
MO |
| SM72 | IRP004 | SM72-SW-A | short wave | 415 | 3500 | 800 | 15*33 | B | Grafix
Heidelberg 72 |
| SM72 | IRP005 | SM72-MW-B | med. wave | 415 | 1900 | 800 | 15*33 | B | Grafix
Heidelberg 72 |
| SM102 - pre 97' | IRP006 | SM102-SW-A | short wave | 415 | 3500 | 1100 | 11*23 | A | Heidelberg
SM102(pre1997)
Grafix Part:2130012 |
| SM102 - pre 97' | IRP007 | SM102-MW-B | med. wave | 415 | 2500 | 1100 | 15*33 | B | Heidelberg
SM102(pre1997)
Grafix Part:2130011 |
CD74/SM74/
MAN 500 | IRP008 | SM74-SW-C | short wave | 400 | 6950 | 900 | 11*23 | H | Drystar-Heidelberg
SM74/CD74(post 1997) |
CD74/SM74/
MAN 500 | IRP009 | SM74-FMW-B | fast. med. | 480 | 4200 | 820 | 15*33 | B | Grafix Heldelberg
SM74 post 1997 |
CD74/SM74/
MAN 500 | IRP010 | MANGX-FMW-B | fast. med. | 415 | 4200 | 820 | 15*33 | B | Grafix SHS MAN
Roland 500 |
| CD102/SM102 | IRP011 | SM102-SW-C | short wave | 400 | 5400 | 1200 | 11*23 | H | Drystar |
| CD102/SM102 | IRP012 | SM102-FMW-B | fast. med. | 180 | 6000 | 1120 | 15*33 | B | Grafix SHS Heidelberg
102 post 1997 |
| CD102/SM102 | IRP013 | SM102-FMW-B-3000 | fast. med. | 400 | 6200 | 1160 | 15*33 | B | Drystar 3000
Heidelberg SM102/CD102 /SM10(post) |
| SM105XL | IRP014 | SM105XL-FMW-B | fast. med. | 400 | 6200 | 1160 | 15*33 | B | Drystar Heidelberg
SM105XL(past 2007 ) |
| XL75 | IRP016 | XL75 | short wave | 400 | 3500 | 900 | 11*23 | B | XL75 |
IRP infrared lamp application
1.Infrared Heating For Plastics Process
IR drying of coatings on plastics
IR stretching or shrinking plastics
IR Heating For Plastic Packaging
IR heating for blow moulding of PET bottles
2.Infrared Heating For Printing Industry
IR curing ink on cloth
IR drying for inkjet-based CTP plates
IR drying of printing products ,such as using in banners machine
Infrared Heat Lamp Advantages
Long serving life: over 5000 hours
Fast Reaction Time: About 1-2s to achieve full power output.
Energy Saving: Gold and Ceramic coating maximize reflect Infrared
radiation up to 90%, more energy saving, smaller footprint and
better heating results.
Green, safe and Environment Protecting: nontoxic and peculiar
smell, no risk of contamination over environment or target object
to be heated.
Installation
Turn off all electrical power to your lamps when stalling or
replacing them.
Rated voltage:
Infrared emitters should never be operated with more than the
maximum rated voltage specified.
Any longer operation at excess voltage(V> 1 10% of the rated
voltage) may result in destruction of
the infrared emitter.
Installation:
Transport
